Rendering Syntactic Trees with arborize()

The problem

Syntactic trees are a staple of linguistics. Whether you are analyzing argument structure, working through a derivation in a Minimalist framework, or simply illustrating the constituent structure of a sentence for a course handout, you need a way to produce clean, readable tree diagrams.

For a long time, the standard answer was LaTeX. Packages like forest, tikz-qtree, and gb4e have served linguists well, and they remain powerful tools for complex diagrams. But they come with significant overhead: a full LaTeX installation, custom .sty files, and a build pipeline that can be difficult to integrate with modern R-based workflows. If your analysis lives in a Quarto document, a Shiny app, or an R Markdown report, pulling in LaTeX just to draw a tree is a heavy dependency for a relatively simple task.

The situation is further complicated when you want to embed a tree in a format that has nothing to do with LaTeX — a Word document, a Keynote slide, a webpage. A PDF compiled from LaTeX does not travel well.

How `arborize()` solves it

arborize() takes a syntactic tree description as a character string, renders it using Quarto’s Typst engine, and exports the result as a standalone PNG image. The PNG can be embedded anywhere: in a Quarto document, an R Markdown report, a Word file, a presentation, or uploaded directly to a content management system.

The function handles the entire pipeline internally:

It builds a minimal throwaway Quarto document containing the tree
Quarto renders the document via Typst to an intermediate PDF
The PDF is converted to PNG at the requested resolution
Temporary files are cleaned up automatically
Optionally, a provenance .yaml file is written alongside the PNG recording the tree string and all rendering arguments

No LaTeX required. No intermediate files left on disk. One function call, one PNG.

A note on first use

arborize() relies on Typst packages hosted at the Typst package registry. On first use, Typst will download the required package to a local cache (~/.cache/typst/packages/). This requires an internet connection. Subsequent renders use the cached package and work offline.

Two rendering backends

arborize() supports two rendering backends, controlled by the tree_notation argument.

`tree_notation = "simple"` — bracket notation

The default backend uses the @preview/syntree Typst package, which accepts bracket notation. This is the most compact input format and the one most linguists already know from X-bar theory textbooks and LaTeX forest notation.

Nodes are enclosed in square brackets. The first element of each bracket is the node label; subsequent elements are daughter nodes. Leaf nodes appear without brackets.

[S [NP [Det the] [N cat]] [VP [V sat]]]

This backend suits the majority of use cases: simple to moderately complex phrase structure trees without specialized annotation.

`tree_notation = "structured"` — lingotree notation

The structured backend uses the @preview/lingotree Typst package, which accepts nested tree() function calls. The syntax is more verbose but more expressive: it supports per-node styling, movement arrows between nodes, and multi-dominant trees where a single node appears under two parents.

tree(
  tag: [VP],
  tree(
    tag: [DP],
    [every],
    [farmer]
  ),
  [smiled]
)

This backend is the right choice when you need fine-grained visual control or when you are drawing structures from Government and Binding or Minimalist frameworks where movement and multi-dominance are central.

The user is responsible for providing valid tree() syntax. The @preview/lingotree documentation is the authoritative reference for the full API.

Getting the crop right: `papersize` and `margin`

Before diving into examples, it is worth understanding how papersize and margin interact to determine what the final PNG looks like.

arborize() renders the tree onto a Typst page of the specified papersize. That page becomes the PDF, which is then converted to PNG. If the page is much larger than the tree, the PNG will have a lot of empty whitespace around the tree — it will look small and lost in the image. If the page is too small, the tree will be clipped.

The goal is to choose a papersize that fits snugly around the tree, with margin providing a comfortable buffer. Think of it as choosing an envelope that is just big enough for your letter.

Choosing a papersize

Typst’s paper sizes follow the ISO standard series. For reference:

papersize	Dimensions	Good for
`"a7"`	74 × 105 mm	Very small trees, 2–3 nodes
`"a6"`	105 × 148 mm	Simple trees, 4–6 nodes
`"a5"`	148 × 210 mm	Default — medium trees
`"a4"`	210 × 297 mm	Wide or deep trees
`"a3"`	297 × 420 mm	Very wide trees

Start small and go up if the tree is clipped. A simple NP fits on "a6". A full clausal tree typically needs "a5". The aspectual classes tree, which branches very broadly, benefits from "a4".

Choosing a margin

The margin argument sets equal padding on all four sides of the page. The default is "0.5cm", which works well for most trees. Reduce it to "0.2cm" for a tighter crop, or increase it to "1cm" if you want more breathing room around a complex tree.

The general workflow

A practical approach when sizing a new tree:

Start with papersize = "a5", margin = "0.5cm" (the defaults)
If there is too much whitespace, drop to "a6" or "a7"
If the tree is clipped, move up to "a4" or "a3"
Adjust margin for final fine-tuning

Examples

A simple NP

The most basic case — a determiner phrase nested under a noun phrase. A simple NP fits well on "a6".

arborize(
  "[NP [Det the] [N cat]]",
  output    = "figures/np-tree.png",
  papersize = "a6",
  margin    = "0.5cm"
)

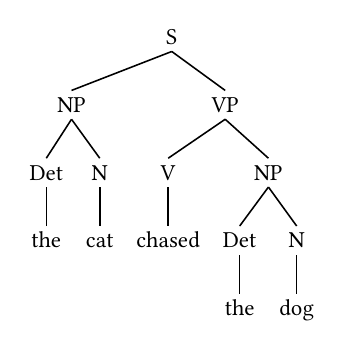

A clausal tree

A simple transitive clause with subject and object. The extra branching calls for "a5".

arborize(
  "[S [NP [Det the] [N cat]] [VP [V chased] [NP [Det the] [N dog]]]]",
  output    = "figures/clause-tree.png",
  papersize = "a5",
  margin    = "0.5cm"
)

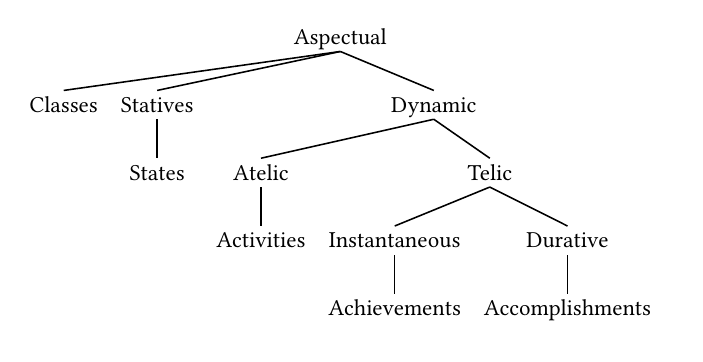

Aspectual classes

The classic Vendlerian classification of verbal aspect — a wide, multi-level tree. This one needs "a4" to accommodate its breadth, and a slightly larger margin gives the labels room to breathe.

arborize(
  paste0(
    "[Aspectual Classes ",
    "[Statives [States]] ",
    "[Dynamic ",
    "[Atelic [Activities]] ",
    "[Telic ",
    "[Instantaneous [Achievements]] ",
    "[Durative [Accomplishments]]]]]"
  ),
  output    = "figures/aspectual-classes.png",
  papersize = "a4",
  margin    = "1cm",
  dpi       = 300
)

Print-quality output

For figures destined for publication, use dpi = 600. The default dpi = 300 is appropriate for screen use and general document embedding; 600 is the minimum for print reproduction. Note that higher DPI produces a larger file but does not change the crop — papersize and margin still control that.

arborize(
  "[NP [Det the] [N cat]]",
  output    = "figures/np-tree-hires.png",
  papersize = "a6",
  margin    = "0.5cm",
  dpi       = 600
)

Tight crop with a narrow margin

For trees that will be embedded in a document with its own padding, a tighter crop often looks cleaner. Reducing margin to "0.1cm" crops very close to the tree itself.

arborize(
  "[NP [Det the] [N cat]]",
  output    = "figures/np-tree-tight.png",
  papersize = "a6",
  margin    = "0.1cm"
)

Structured notation with lingotree

A VP with a DP internal argument, rendered using the lingotree backend. Note that the tree() string is passed verbatim to Typst — the syntax is Typst, not R. Always pass tree_notation = "structured" when using lingotree; without it arborize() defaults to the syntree backend and the output will be incorrect.

arborize(
  "tree(
    tag: [VP],
    tree(
      tag: [DP],
      [every],
      [farmer]
    ),
    [smiled]
  )",
  tree_notation = "structured",
  output        = "figures/vp-lingotree.png",
  papersize     = "a6",
  margin        = "0.5cm"
)

Suppressing the provenance file

By default arborize() writes a companion .yaml file alongside the PNG recording the tree string and all rendering arguments. Pass provenance = FALSE to suppress it.

arborize(
  "[NP [Det the] [N cat]]",
  output     = "figures/np-tree.png",
  papersize  = "a6",
  provenance = FALSE
)

Working with provenance files

When provenance = TRUE (the default), arborize() writes a .yaml file with the same stem as the PNG. For a call like:

arborize(
  "[NP [Det the] [N cat]]",
  output    = "figures/np-tree.png",
  papersize = "a6",
  margin    = "0.5cm"
)

The directory will contain:

figures/
├── np-tree.png
└── np-tree.yaml

The .yaml file records everything needed to reproduce the render:

rendered_by: toolero::arborize(), version 0.4.0
rendered_at: 2026-04-30 14:23:11 CDT
output: /path/to/figures/np-tree.png
tree_notation: simple
typst_package: '@preview/syntree:0.2.1'
dpi: 300
papersize: a6
margin: 0.5cm
tree: '[NP [Det the] [N cat]]'

To re-render from a provenance file — for example to increase the DPI for a journal submission while keeping the exact same tree and crop settings — read the .yaml and pass its fields back to arborize():

p <- yaml::read_yaml("figures/np-tree.yaml")

arborize(
  tree          = p$tree,
  output        = "figures/np-tree-hires.png",
  dpi           = 600,
  tree_notation = p$tree_notation,
  papersize     = p$papersize,
  margin        = p$margin,
  overwrite     = TRUE
)

The provenance file ensures that the high-resolution version is cropped identically to the original — same papersize, same margin, different dpi.

A dedicated rearborize() function that wraps this pattern is not yet implemented. If this would be useful to you, please file an issue at https://github.com/erwinlares/toolero/issues — user demand is the most direct signal that a feature is worth building.

Embedding trees in documents

Once you have a PNG, embedding it in any R-based document is straightforward.

In a Quarto document or R Markdown:

```{{r}}
#| label: fig-np-tree
#| fig-cap: "A simple NP"
#| out-width: "40%"
knitr::include_graphics("figures/np-tree.png")
```

In a Quarto document using Markdown syntax directly:

![A simple NP](figures/np-tree.png){width=40%}

Because arborize() produces a standard PNG, the tree can also be inserted into Word documents via officer, added to a PowerPoint slide via rvg, or uploaded directly to any content management system.

Argument reference

Argument	Default	Description
`tree`	—	Tree string in bracket or lingotree notation
`output`	`"syntactic-tree.png"`	Path to the output PNG file
`dpi`	`300`	Resolution in dots per inch
`tree_notation`	`"simple"`	`"simple"` for syntree, `"structured"` for lingotree
`papersize`	`"a5"`	Typst paper size; match to tree complexity
`margin`	`"0.5cm"`	Page margin; controls buffer around the tree
`provenance`	`TRUE`	Write companion `.yaml` provenance file
`overwrite`	`FALSE`	Overwrite existing output files

References

Typst syntree package (v0.2.1): https://typst.app/universe/package/syntree
Typst lingotree package (v1.0.0): https://typst.app/universe/package/lingotree
